Automatic brush carding machine
microC
- Carding
Informations and download
Characteristics
- Carding with no risk of injury to the operators in a dust-free environment
- Uniform and regular brush preparation
- Various carding tools available
- Arbor with HSK-40 modular chuck to adapt to other socket formats.
- Carding brushes of Ø120 to Ø300 mm
Functionalities
Protective work zone cover
Card and brush
Arbor with HSK-40 modular chuck
Specificities
- Brush carding to the desired dimension by a comb fixed on a manually pushed slide
- To-and-fro motion of the comb ensures a uniform diameter over the width of the brush - Adjustable travel
- Device for quick clamping of the socket
- Chuck for mounting brushes
| Ø max. | 120...300 mm / 80 mm (option) |
| Max. width | 130 mm |
| Rotation speed | 1'400 rpm |
| Type of clamping | Quick change system BULA |
| Slide | Manual |
| Dimensions L/D/H | 970/870/1'230 mm |
| Empty weight | 350 kg |
| Installed power | 3.5 kW |
| Connection for dust remover | 1 x Ø 120 mm |
| • Roughing card for compound-free cotton |
| • Finishing card with comb, for compound-free cotton |
| • Finishing card with MD plate for compound-coated cotton |
| • Socket holder pin to measure |
| • Modular pin mounted on HSK 40 |
| • Led work lamp |
Options
Finishing card with comb
Finishing card MD

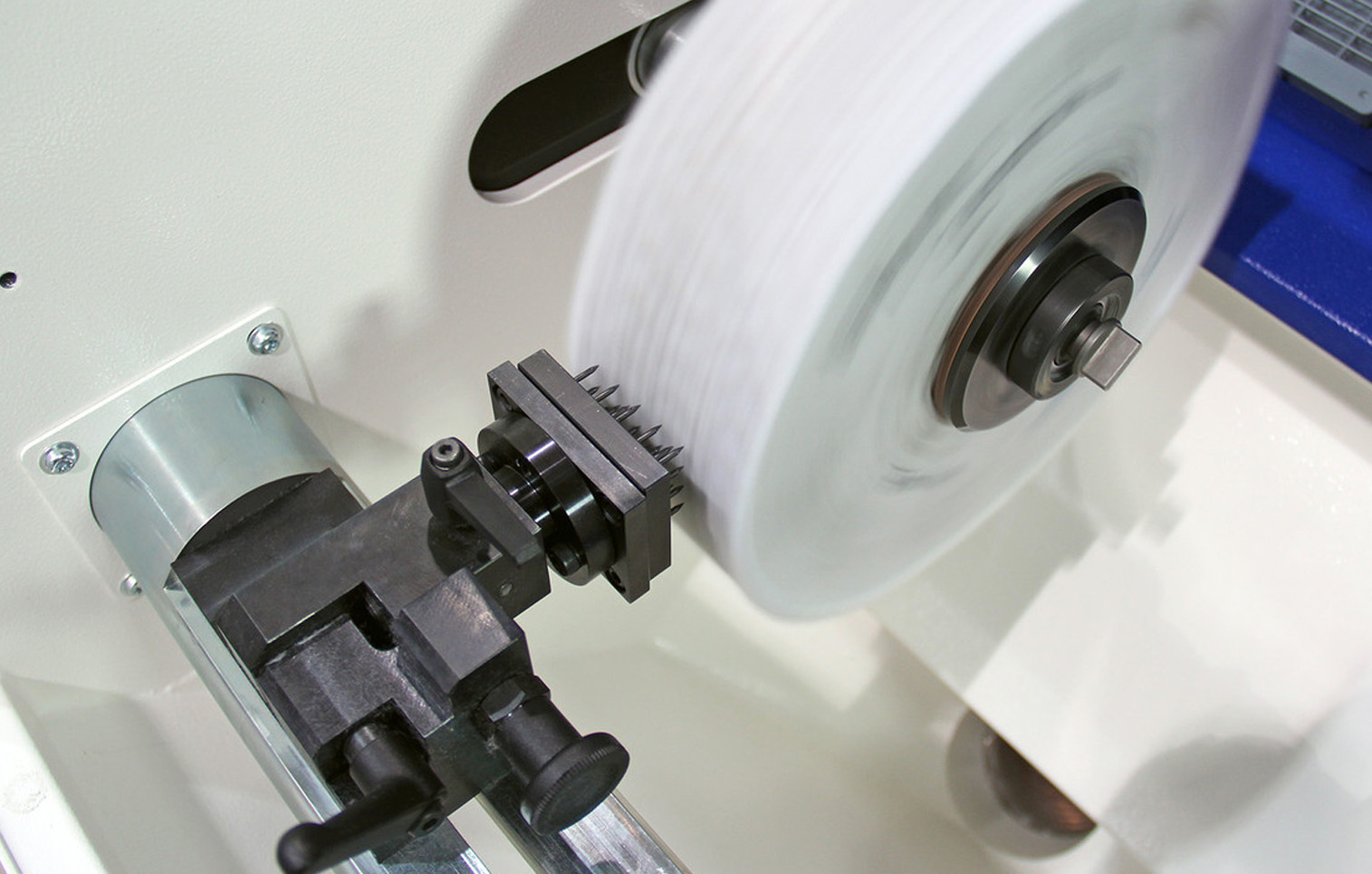

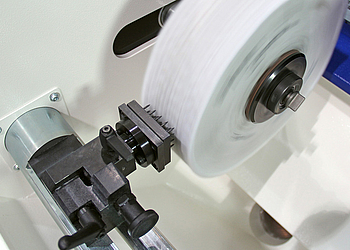

Roughing card

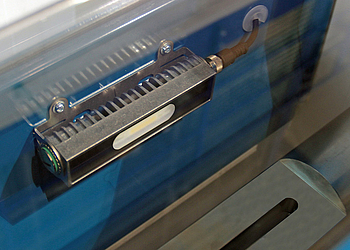

LED work lamp
