CNC Polishing, deburring and brushing machine
POLIGO B3
- Felt polishing
- Brushing
- Brightening
- Smoothing
- Satin-finishing
- Polishing
- Emery polishing
- Deburring
Informations and download
Applications

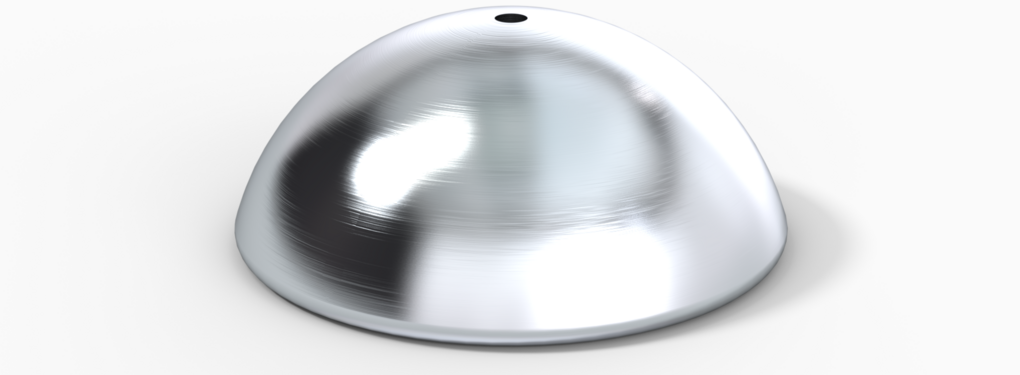

Spherical polishing
Before polishing
After polishing
Polishing precious metals
Before polishing
After polishing
Stainless steel polishing
Before polishing
After polishing
Aluminium polishing
Before polishing
After polishing
Steel polishing
Before polishing
After polishing
Mirror polishing on BULA POLIGO-B3
Before polishing
After polishing
B1 Brushing on POLIGO-B3
Before polishing
After polishing
Characteristics
- 3 to 5 CNC units for carrying out different operations simultaneously
- Machine configuration according to your requirements
- High rates can be achieved
- Precision, repeatability, productivity and user-friendliness
- Simplified programming with the user interface
- Graphic programming assistant with dynamic display of the contact point on the machine and offline
- A single workpiece clamping for complete finishing
- Optimised series setup changing time with quick-change consumable and tool system
- Automatic polishing compound management
- Workpieces loaded and unloaded in masked time
- Automation with standard or customised solutions
Functionalities

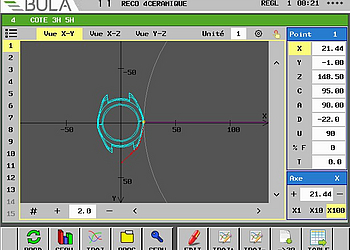

B3 Interface
B3 Interface
B3 Trajectories
Specificities
- Fanuc control with colour touch screen for entering data
- Toolpath learning by "teach-in" with mobile control panel
- Toolpaths generated by FAO can be imported
- Enables programs to be built easily without using ISO code
- Oscillation possible on all axes
- Units can be independently programmed
| Ø max. | 100 mm |
| Max. height | 100 mm |
| Max. weight | 1 kg |
| Other dimensions; weight on demand |
| Examples of applications: |
| • Watch strap components |
| • Blades |
| • Various watch components |
| • Sapphire watch crystals |
| • Belt buckles |
| • Cufflinks |
| • Lighters |
| • Bearing cages |
| • Cam for injection system |
| • Dental implant posts |
| • Pen bodies |
| • Watch crown/push button |
| • HSK clamping socket |
| • Coins/medals |
| • Jewelry parts |
| • Leatherwork parts |
| • Steering linkage ball joint |
| • Orthopaedic parts |
| etc. |
| Dimensions | Ø800 mm |
| Indexing | 90°/72°/60° |
| Number of workpiece holder spindles | 4/5/6 |
| Number of units | 3 - 5 | |
| Number of axes | 5 | |
| Travel | Max. speed | |
| Linear axis X | 220 mm | 10 m/min |
| Linear axis Y | 220 mm | 10 m/min |
| Linear axis Z | 250 mm | 10 m/min |
| Rotary axis A | 135° | -45° - +90° |
| Rotary axis C | 360° | 400...800 rpm (according to config.) |
| • Cylindrical brushing unit (standard) |
| • Gyroscopic brushing unit |
| • Satin finishing/emerising |
| • Brushing unit with face brush |
| • Interior polishing unit |
| Number of work units | 3...5 |
| Dimensions L/D/H | 2'500/3'000/2'250 mm |
| Empty weight | ~3'200...4'500 kg |
| Installed power | 19...28 kW |
| • Solid or liquid compound distribution |
| • Dynamic measurement of brush diameter |
| • Protective cover for the unit |
| • Automatic loading/unloading system |
| • Vacuum or pneumatic workpiece clamping or device with centre point |
| • HSK-32 Tool Interface |
| • Felt profiling tool |
| • Centre point for spindle |
| • Workpiece turnover system |
| • Dry working or with coolant |
| • Extinguishers |
| • Remote maintenance |
Options
Automatic solid polishing compound distributor system
Automatic liquid polishing compound distributor system
Belt unit
Gyroscopic unit
Unit dust cover
Dynamic brush measurement
Workpiece probing device with Renishaw
Quick-change pallet system
Graphical programming assistant
Our automation solutions
Increase the productivity and autonomy of your RECO and BULA machines
BULA POLIGO B3 : CNC Polishing, deburring and brushing machine
The BULA POLIGO B3 is a CNC Polishing, satin-finishing, deburring, brushing and belt-grinding machine combining precision, flexibility and productivity. Compact, modular, and configurable with 3 to 4 CNC units up to 5 axes, it features a 4- to 6-position rotary table to ensure speed and flexibility.
This BULA POLIGO B3 performs all finishing operations: polishing, satin-finishing, deburring, brushing and belt-grinding. With hidden loading/unloading and simplified programming with 3D assistant, it optimizes production cycles without complexity.
The CNC Polishing, satin-finishing, deburring, brushing and belt-grinding machine BULA POLIGO B3 is particularly suitable for the finishing of orthopedic implants, watch components, jewelry, leather goods, turbine blades, automotive parts or perfume bottles.
As a true CNC Polishing, satin-finishing, deburring, brushing and belt-grinding machine, the BULA POLIGO B3 ensures premium finishing, high repeatability and reduced tool changeover times.
