Advanced deburring machines

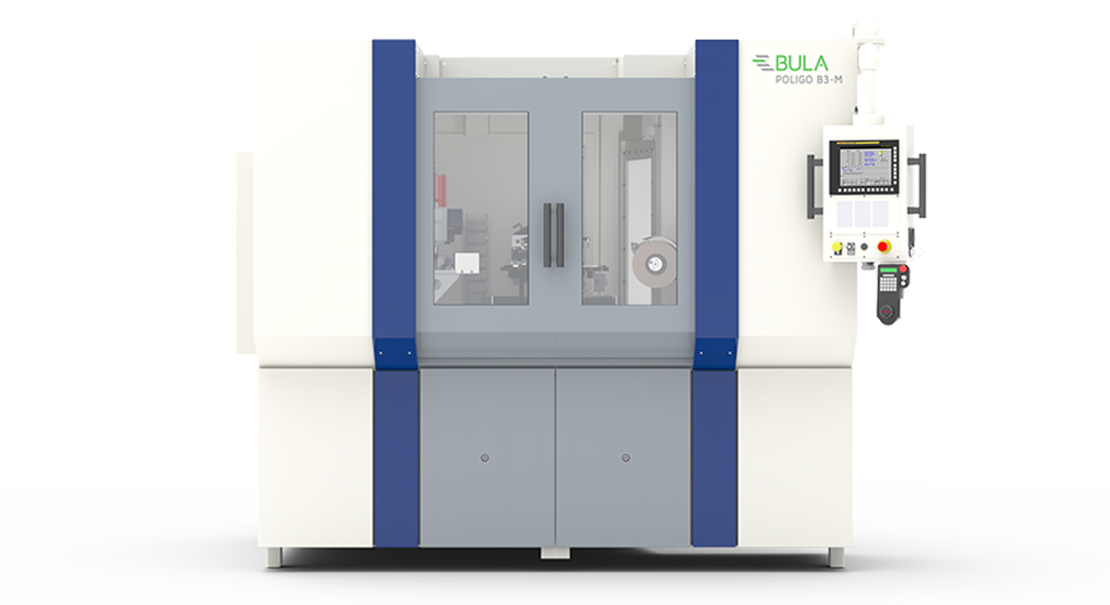

POLIGO B3-M
- Deburring
Informations and download
Applications

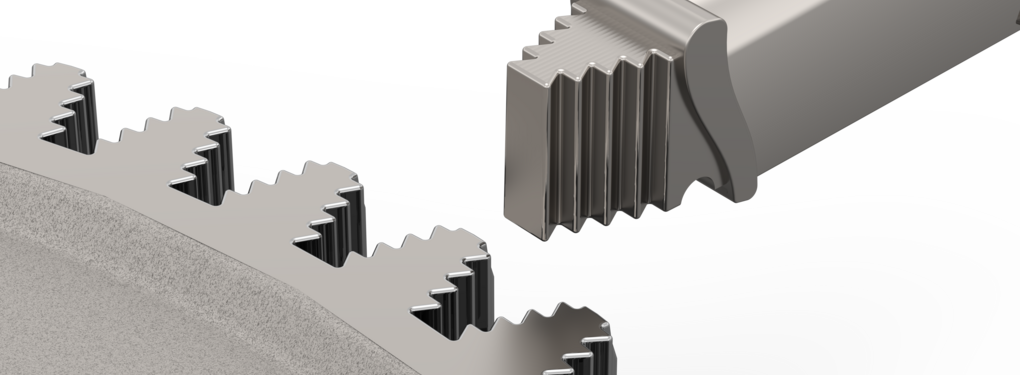

Radiusing on POLIGO B3-M

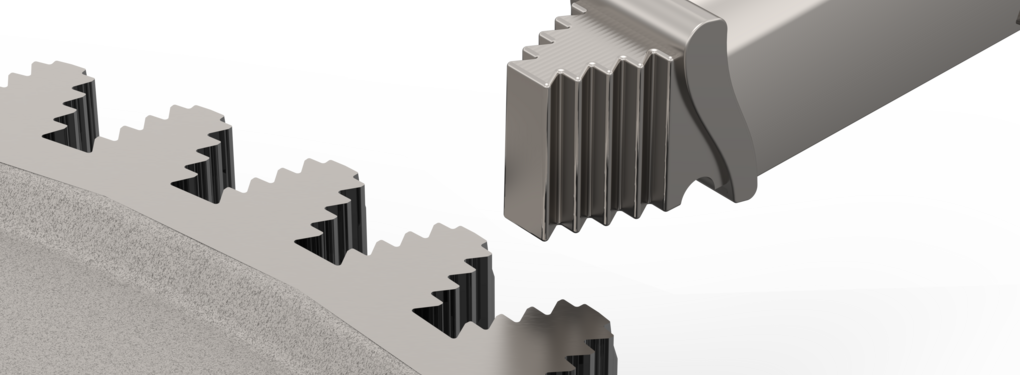

Before radiusing
Before radiusing
Characteristics

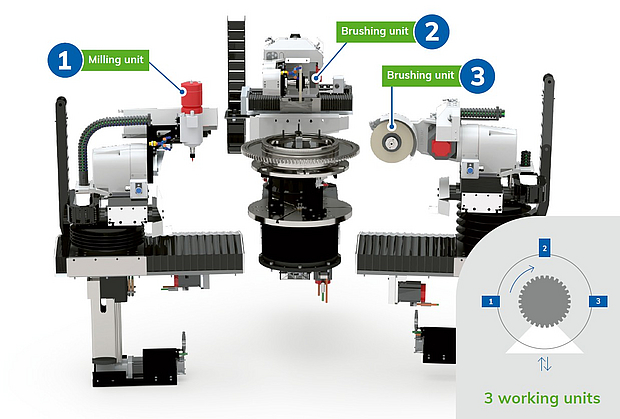

- 3 CNC units allowing simultaneous execution of different operations
- Precision, repeatability, and user-friendliness
- Simplified programming via the user interface
- Touch screen MMI by BULA
- Milling toolpath generated by CAM software can be uploaded
- Macro library for part positioning
- Automatic tool wear management for optimum work regularity
Specificities

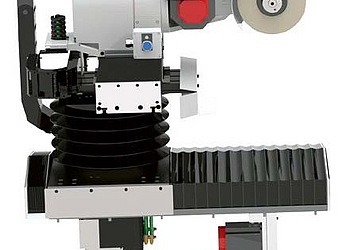

- 𝗕𝗥𝗨𝗦𝗛𝗜𝗡𝗚 𝗨𝗡𝗜𝗧
- Control of the X-Y-Z-A-C axes and interpolation
- "Teach-in" point programming
- Brush speed and rotation direction control
- Automatic 3-D brush wear control parameters ensures optimum uniformity of the tool work pressure during process
- C axis function as a rotary spindle with variable speed / rotation direction or position

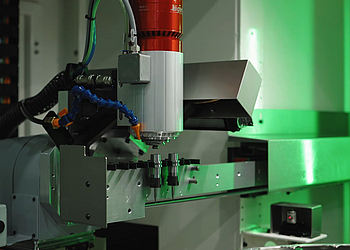

- 𝗠𝗜𝗟𝗟𝗜𝗡𝗚 𝗨𝗡𝗜𝗧
- Control of the X-Y-Z-A-C axes and interpolation
- Max speed of the spindle: 30,000 rpm
- RENISHAW groove position measuring ensures accurate and regular milling path
- Tool length and tool wear measuring device
- C axis function for position
| Deburring of Turbine Disk Slots or Grooves |
| Maximum part size range (config. A) | Ø100-450 x 150 mm |
| Maximum part size range (config. B) | Ø350-900 x 150 mm |
| Size | Ø 500 mm |
| Load capacity | 75 kg |
| Pallet clamping (BULA manual system) | Ø as per part size |
| Number of units | 2 or 3 |
| Number of axes | 5 |
| Axis interpolation per unit (milling) | 3 |
| Axis interpolation per unit (brushing) | 4 |
| Stroke X axis | 375 mm |
| Stroke Y axis (optional) | 200 mm |
| Stroke Z axis | 250 mm |
| Stroke A axis (standard configuration) | 125° |
| Stroke C axis | 360° |
| Path measuring probe | Renishaw |
| Tool length measuring laser | Renishaw |
| Milling spindle |
| Max speed | 30,000 rpm |
| Power | 1,5 kW |
| HSK type | HSK-E25 |
| Brushing spindle |
| Max speed brush | 600-3,000 rpm |
| Max size brush | Ø300/35 x 100 mm |
| Overall dimensions (L x W x H) | 2,5 x 2,95 x 2,45 m |
| Weight | 3,150/4,000 kg |
| Rated power | 19 / 22 kW |
| Compressed air | 6 bars |
Options
Unit dust cover
Quick-change pallet system
