Electrolytic polishing machines
DLyte Compact
- Electrolytic polishing
Informations and download
Applications
Cobalt-chromium polishing
Before electrolysis
After electrolysis
Stainless steel polishing
Before electrolysis
After electrolysis
Brass polishing
Before electrolysis
After electrolysis
Titanium polishing
Before electrolysis
After electrolysis
Characteristics
- Based on DryLyte dry electrochemistry technology
- Retains the geometry of the parts
- 3 sizes of machine adapted to the dimensions of the workpieces to be treated
- User-friendly user interface
- Production adapted to prototyping up to medium series
- Compact and elegant design
Functionalities

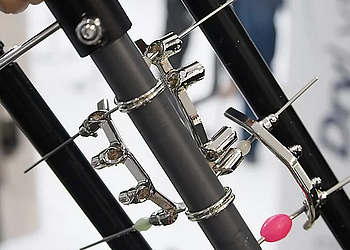

Workpiece support

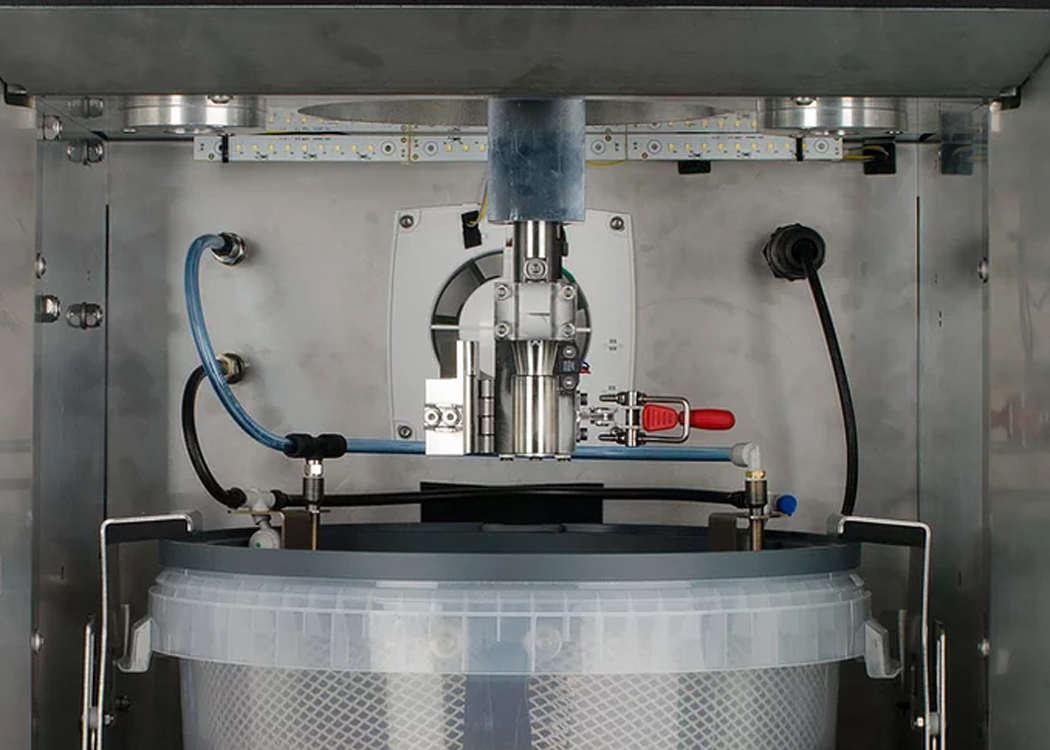

Process zone
User interface
Specificities
- Programmable cycle time
- Process data can be loaded via USB port
- 3 sizes and 3 types of machine
| H (low frequency) | steel and chromium-cobalt |
| HF (high frequency) | steel and titanium |
| H+HT (low and high frequency | steel, chromium-cobalt and titanium |
| Types of machines available | H / HF / H+HF |
| Machine dimensions L/D/H | 500/690/1'150 mm |
| Support dimensions L/D/H | 500/670/725 mm |
| Container volume | Ø75 x 50 mm |
| Machine weight | 103 kg |
| Support weight | 47 kg |
| Power | 2 kW |
| Power supply | 220 V (single phase) |
| Types of machines available | H / HF / H+HF |
| Machine dimensions L/D/H | 820/680/1'280 mm |
| Support dimensions L/D/H | 820/670/725 mm |
| Container volume | 9 litres |
| Machine weight | 180 kg |
| Support weight | 65 kg |
| Power | 3 kW |
| Power supply | 220 V (single phase) |
| Types of machines available | H / HF / H+HF |
| Machine dimensions L/D/H | 950/730/1'410 mm |
| Support dimensions L/D/H | 950/745/730 mm |
| Container volume | 16 litres |
| Machine weight | 240 kg |
| Support weight | 100 kg |
| Power | 5 kW |
| Power supply | 220 V (single phase) |
| • Cobalt-chromium |
| • Stainless steel |
| • Carbon steel |
| • Carbides |
| • Nickel based alloys |
| • Aluminium based alloys |
| • Copper alloys |
| • Titanium alloys |

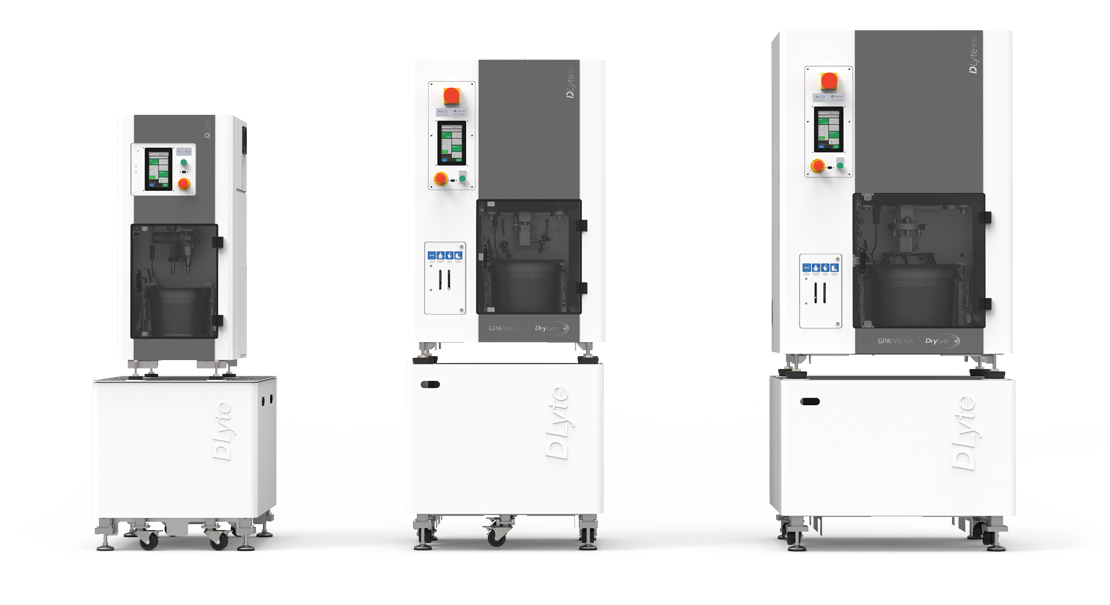

SWIS DLyte Compact : Modular dry electropolishing machine
The SWIS DLyte Compact range includes dry electropolishing machines available in three sizes (DLyte1, DLyte10, DLyte100), designed for different part volumes and dimensions. Each dry electropolishing machine combines DryLyte technology with precise mechanical movement to efficiently polish complex-shaped components.
These dry electropolishing machines preserve part geometry while ensuring uniform finishing, from prototyping to medium series. They are equipped with a user-friendly interface, allow programmable cycles, and deliver fast, repeatable production.
Ideal for dental prostheses, mechanical components, earrings, or osteosynthesis plates, the SWIS DLyte Compact ensures precision, cost-efficiency, and reliability, making this modular range a practical solution for all metal finishing applications.
