Electrolytic polishing machine
DLyte PRO500
- Electrolytic polishing
Informations and download
Applications
Titanium polishing
Before electrolysis
After electrolysis
Titanium polishing
Before electrolysis
After electrolysis

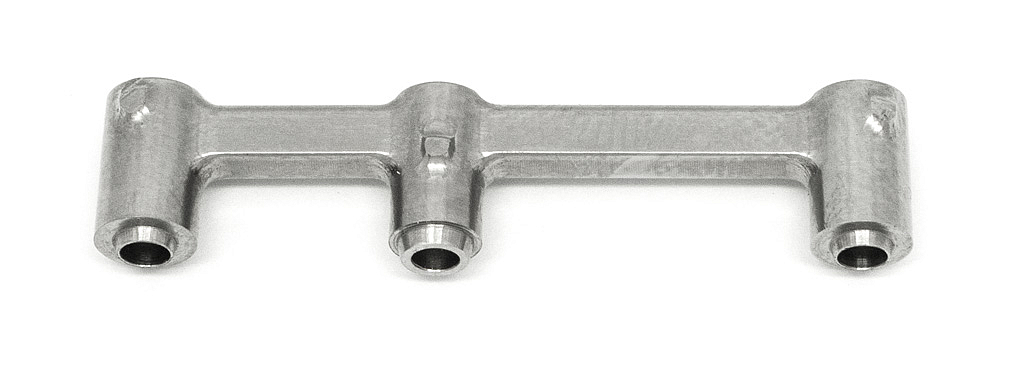

Sintered cobalt-chromium polishing
Before electrolysis
After electrolysis
Characteristics
- Based on DryLyte dry electrochemistry technology
- Retains the geometry of the parts
- Designed for production in large series
- Up-to-the- minute innovatory design
- User-friendly user interface
- Connections 4.0 IOT
Functionalities

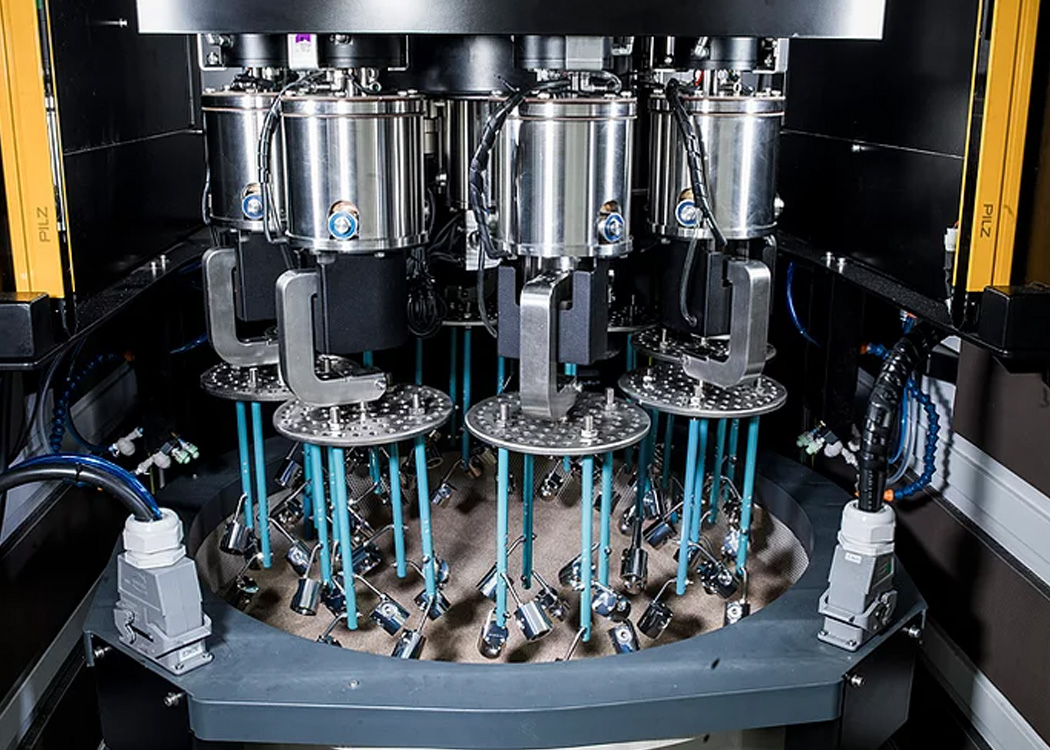

Process zone

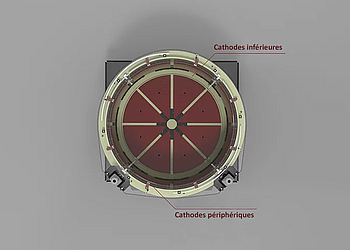

Cathodes

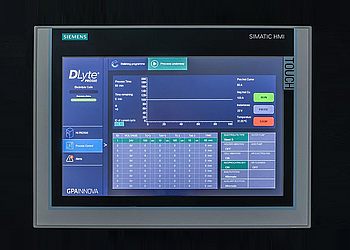

User interface
Specificities
- 8 rotating head workpiece holders
- Large 12" TFT colour screen
- Programmable cycle time
- IOT Ready | Prepared for remote surveillance
- Workpiece size up to Ø750 x 300 mm
| Dimensions L/D/H | 1'300/1'300/2'480 mm |
| Volume of electrolytic contents | 260 L |
| Weight | 2'000 kg |
| Power | 35 kW |
| Power supply | 380...400 VAC (3-phase) |
| Frequency | 50/60 Hz |
| • Cobalt-chromium |
| • Stainless steel |
| • Carbon steel |
| • Carbides |
| • Nickel based alloys |
| • Aluminium based alloys |
| • Copper alloys |
| • Titanium alloys |
| Combinations according the number and size of workpiece(s): |
| • 1 compartment of Ø750 mm |
| • 8 compartments of Ø200 mm |
| • 16 compartments of Ø100 mm |
| • 32 compartments of Ø50 mm |
SWIS DLyte PRO500 : Dry electropolishing machine for mass production
The SWIS DLyte PRO500 is the most advanced, powerful, and versatile dry electropolishing machine, designed for mass production. Based on DryLyte technology, this dry electropolishing machine polishes complex-shaped parts by combining dry electrochemistry with precise mechanical movement.
Equipped with 8 rotating workpiece holders and a user-friendly interface, the dry electropolishing machine SWIS DLyte PRO500 delivers uniform finishing while preserving part geometry, with programmable cycles adapted to large series. It ensures repeatability, biocompatibility, and optimal performance on all metallic surfaces.
Ideal for osteosynthesis plates, dental bridges, mechanical components, or titanium polishing, the SWIS DLyte PRO500 guarantees productivity, quality, and reliability, making this dry electropolishing machine an industrial benchmark for all metal finishing workshops.
