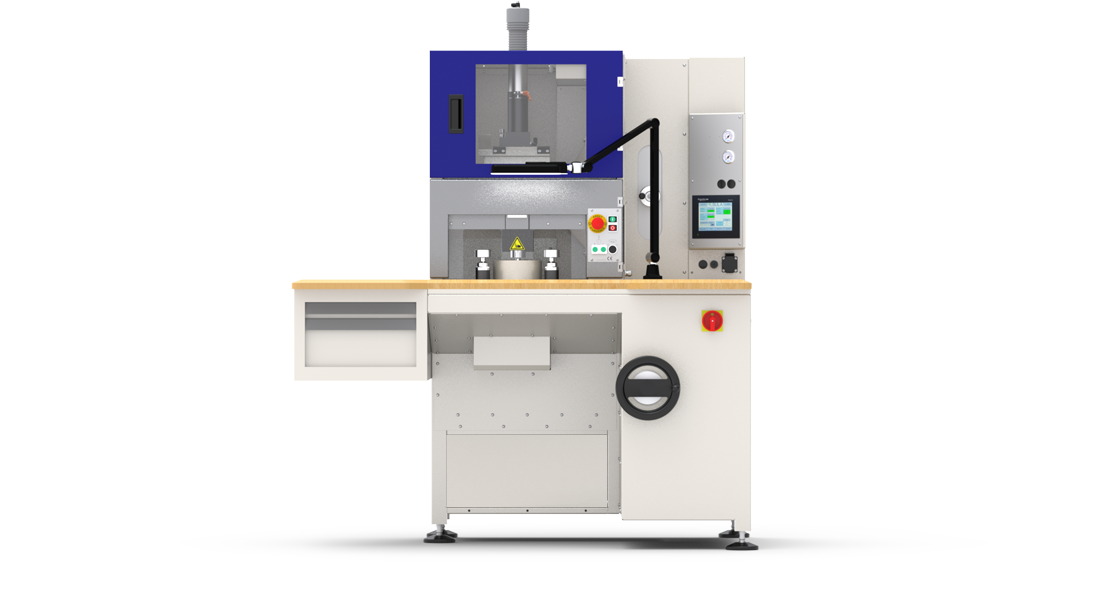

Automatic polishing, deburring & brushing machine with rotating table
microP
- Brushing
- Brightening
- Polishing
Informations and download
Characteristics
- Ergonomic work station
- Workpieces loaded in concurrent time
- Simplified application of polishing compound controlled by MMI or by operator
- Second solid compound automatic dispenser
- Safety envelope for the brushing zone
- Optimal uniformity and repeatability also for short runs
- Functional machine, accessible and user-friendly to limit off-times
Functionalities

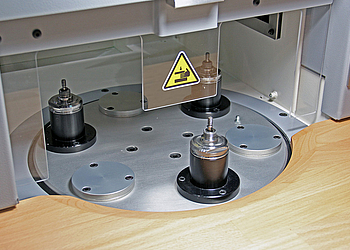

6 spindle rotary table
Easy access to the work area
Easy access to solid compound
Specificities
- HMI with colour touch screen to manage workpiece parameters and recipes
- Table, spindle and brush rotation speeds adjustable
- Automatic workpiece clamping/release
- Integrated extraction inlet
| Ø max. | 80 mm |
| Max. height | 50 mm |
| Max. weight | 0.5 kg |
| Other dimensions; weight on demand |
| Examples of applications: |
| • Watch strap mesh |
| • Watch strap component |
| • Rings |
| • Belt buckles |
| • Cufflinks |
| • Watch dials |
| • Watch movement components |
| • Watch crowns and push buttons |
| • Watch strap buckle/clasp |
| • Watch back/bezel |
| • Watch dial index |
| • Coins |
| • Pendants |
| etc. |
| Dimensions | Ø340 mm |
| Continuous | rotation |
| Table speed | 0.3...2.8 rpm |
| Number of spindles | 3 / 6 (option) |
| Spindle speed | 45...400 rpm |
| Brush dimensions | Ø300/35 x 100 |
| Rotation speed | 560...2'800 rpm |
| Number of axes | 2 | |
| TravelActuation | ||
| X axis | 100 mm | manual |
| Z axis | 220 mm | manual |
| Number of work units | 1 |
| Dimensions L/D/H | 000/420/1'900 mm |
| Empty weight | 500 kg |
| Installed power | 3.7 kW |
| Connection for dust remover | 1 x Ø 100 mm |
| • Continuous rotating table equipped with 6 spindles |
| • Double compound distributor |
| • B-plug format compound block mounting kit |
| • Vacuum clamping |
| • Left hand shelf with drawers |
Options
Continuous rotation table equipped with 6 spindles
Second solid compound automatic dispenser

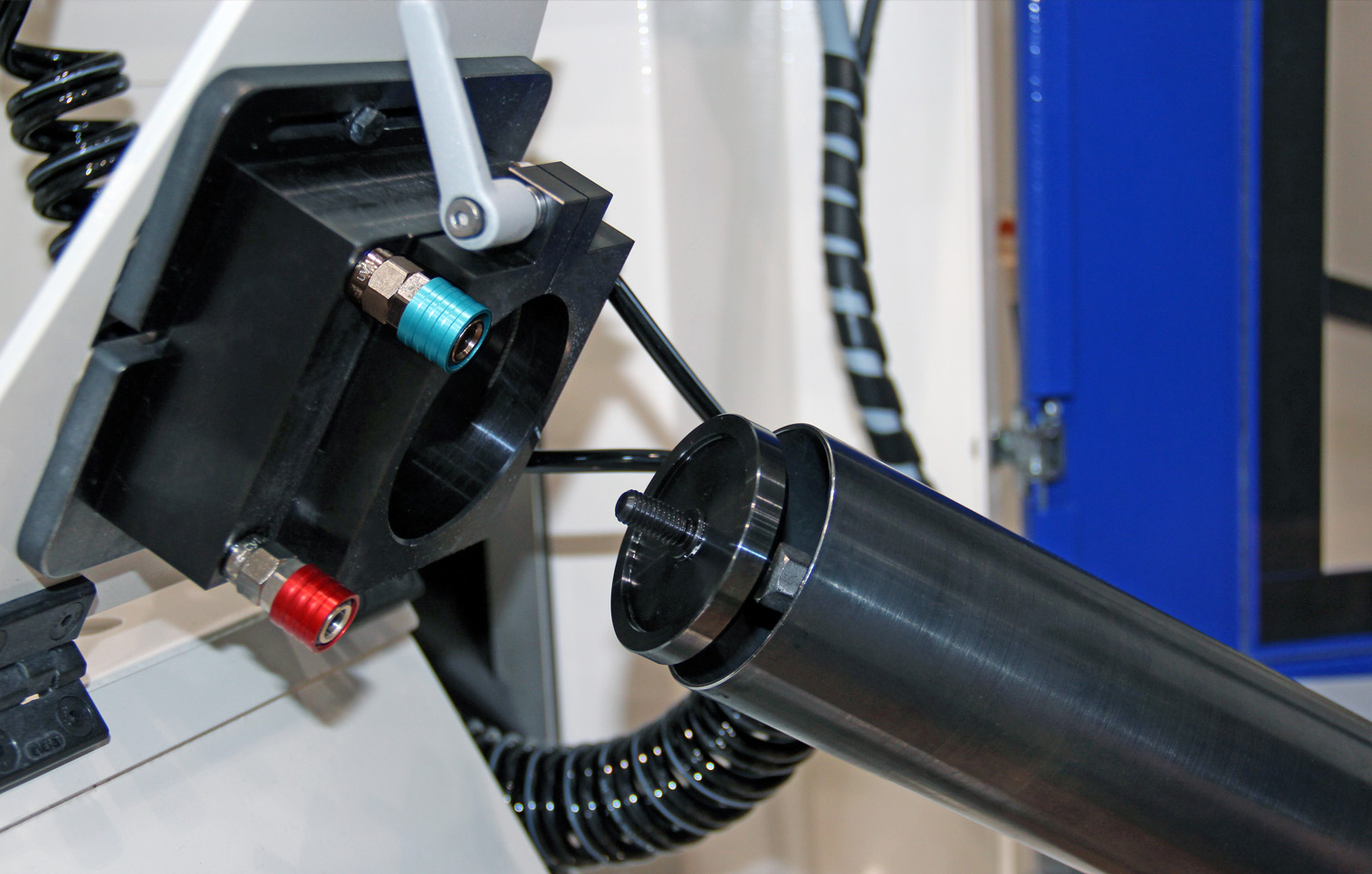

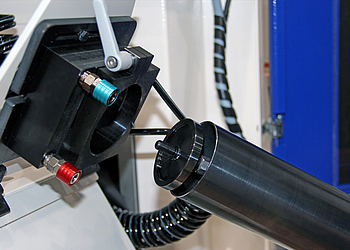

B-plug format compound block fixing kit
Vacuum clamping
