CNC satin finishing machine
MS300/310
- Satin-finishing
Informations and download
Applications
Stainless steel satin finishing
Before satin finishing (polished workpiece)
After satin finishing
Satin finishing precious metals
Before satin finishing
After satin finishing
Characteristics
- 4 or 5 numerical axes according to model
- Device with 2 orientable abrasive belts
- Extremely compact volume and dimensions of the machine
- Oscillation cycles on X and Z axes
- Filtration and cooling system integrated under the machine
- Wide choice of tools (rollers, work tables, sole plates a,d shape sole plates, etc.)
Functionalities

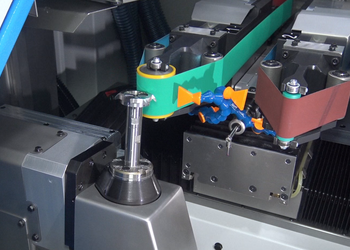

Machining zone
Work roller

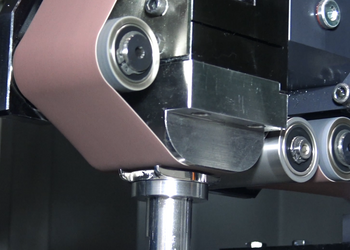

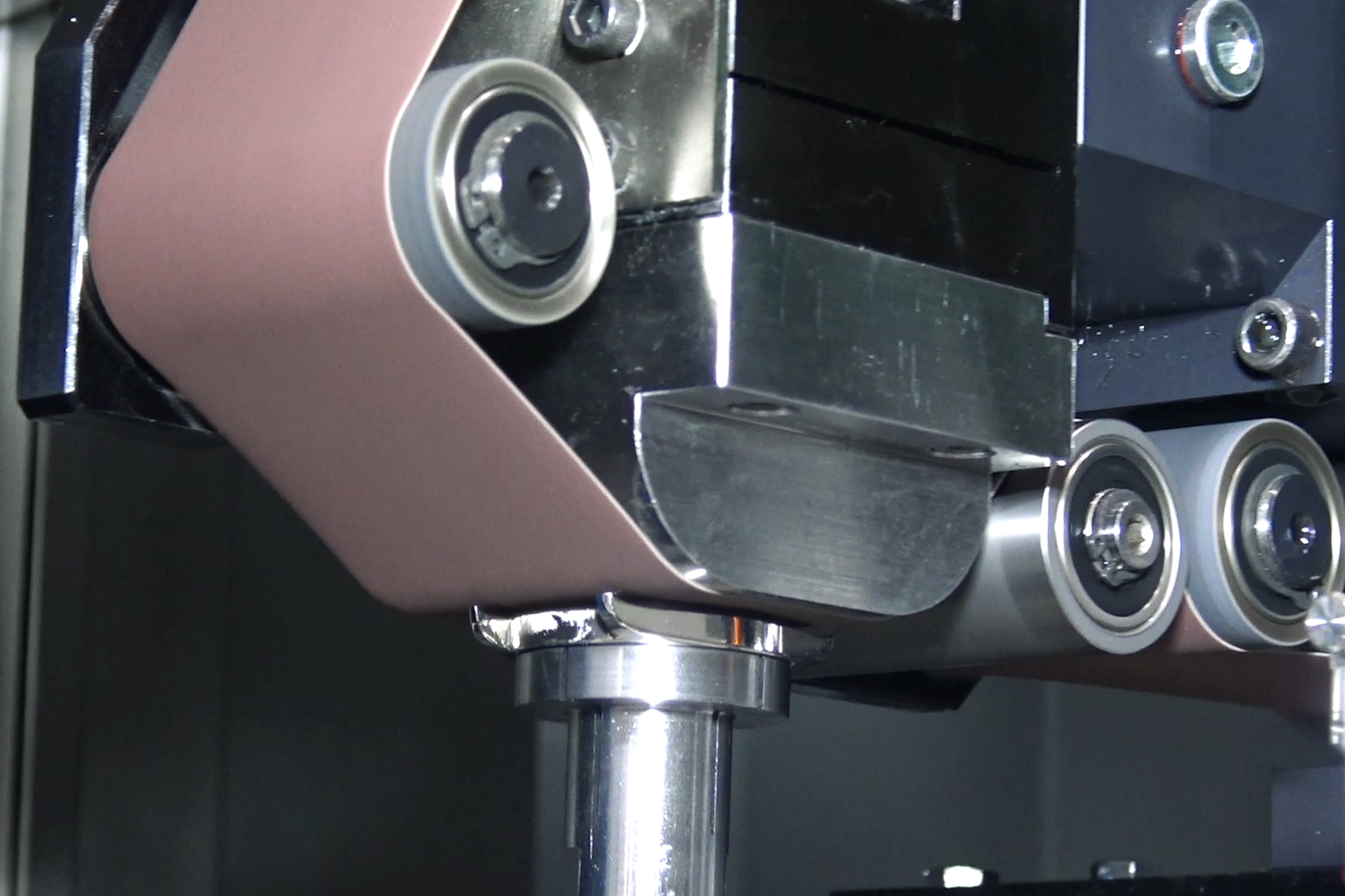

Form sabot
Tools and belt orientation possible
Specificities
- Suitable for workpieces from Ø20...80 mm
- Fanuc 0i control
- ISO programming with macro assistance
| • Watch strap component |
| • Watch back/crystals |
| • Watch caseband |
| Number of axes (simultaneous) | 4 (4)* / 5 (4)** | |
| Travel | Max. speed | |
| Linear axis X | 280 mm | 17 m/min |
| Linear axis Y | 220 mm | 17 m/min |
| Linear axis Z | 180 mm | 17 m/min |
| Rotary axis A** | -10°...5° | 35 rpm |
| Rotary axis C | 360° (spindle) | 30 rpm* / 120 rpm** |
| * MS300 / ** MS310 |
| Number of belt devices | 2 |
| Belt dimensions | 50 x 1'500 mm |
| Machining angle (manually orientable) | 0...90° |
| Belt rotation speed | 0,2...25 m/s |
| Types of tool | Rollers or sole plates |
| Tool specifications | ||
| Rollers | Sole plates | |
| As standard | Ø10...49 mm | Flat |
| On demand | Larger Ø plus | Shaped |
| MaterialPolyurethane | Hard metal |
| Type of lubricant (machining fluid) | Oil |
| Dimensions L/D/H | 1'100/1'700/1'650 mm |
| Empty weight | ~900 kg |
| • Renishaw measuring system |
| • Automatic loading/unloading with workpiece loader CP330 |
| • Air extraction and filtration |
| • Horizontal satin finishing tool |
| • Double position satin finishing tool |
Options

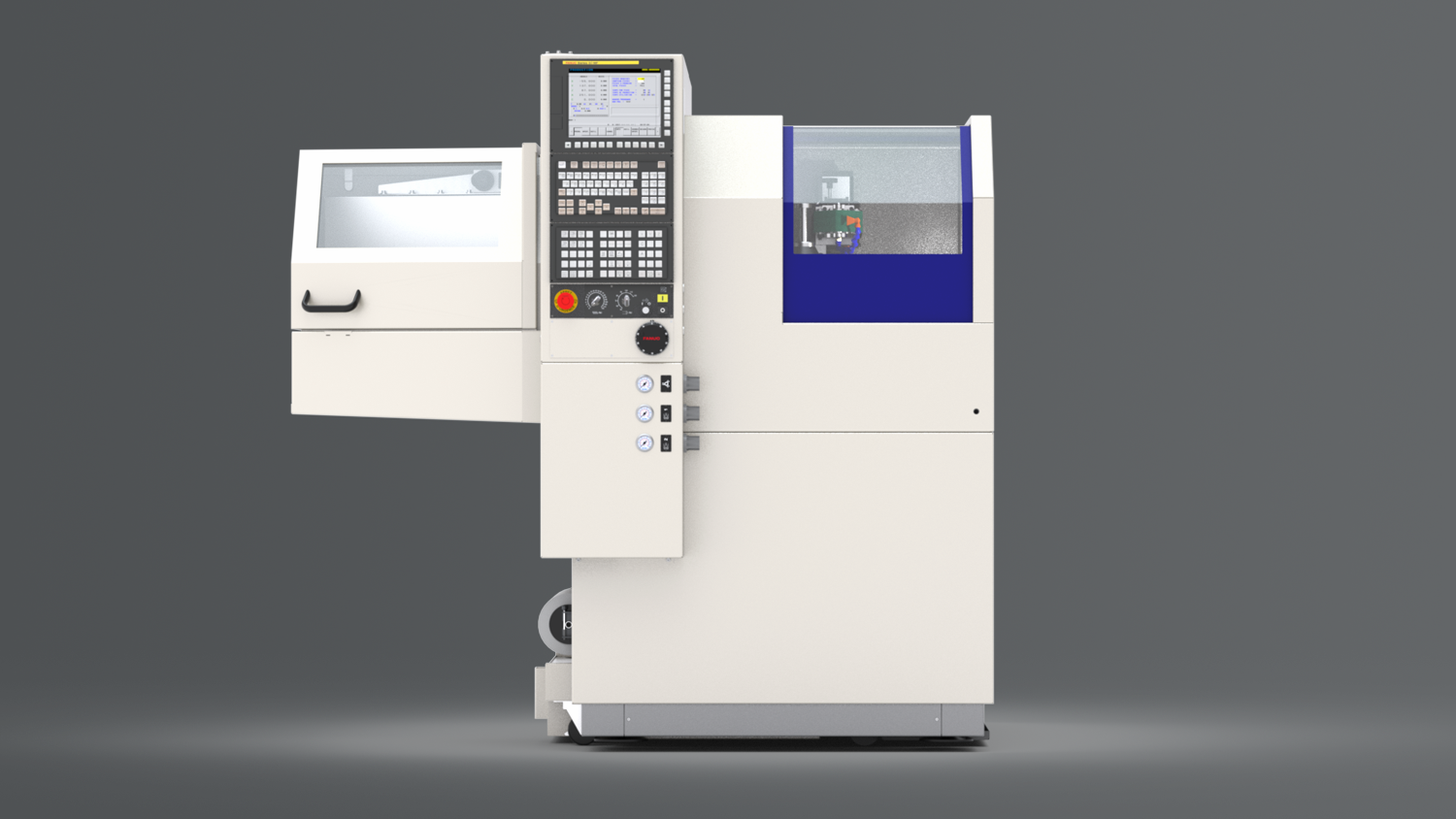

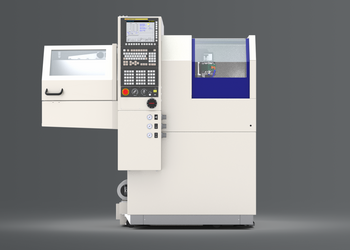

MS300 equipped with workpiece loader CP330

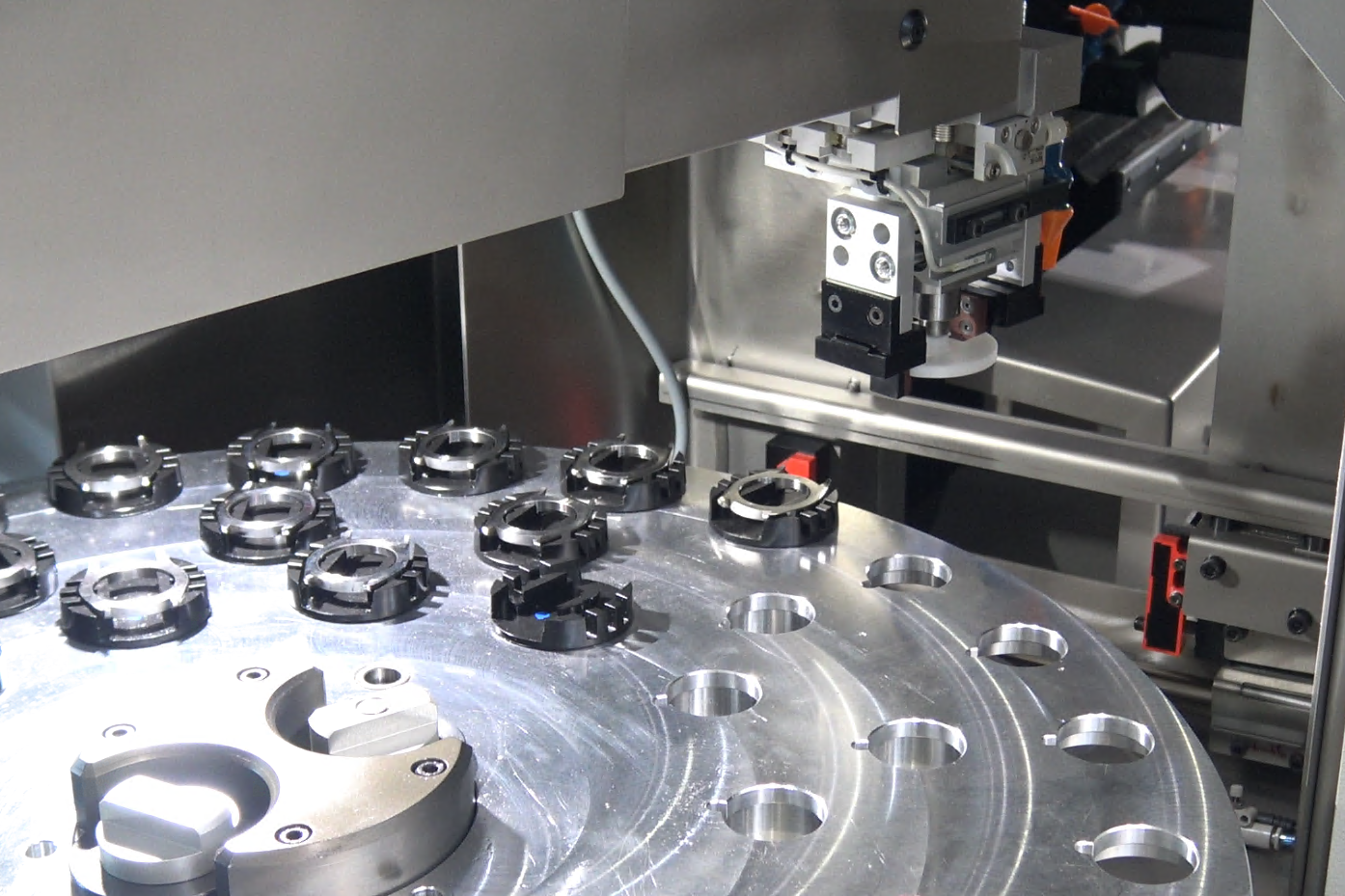

Rotating table and gripper of CP330

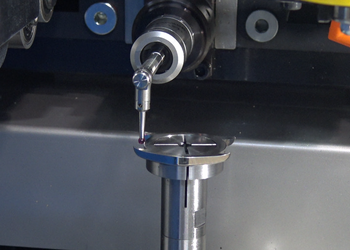

Renishaw touch probe
Our automation solutions
Increase the productivity and autonomy of your RECO and BULA machines
MS300/310: Ultra-Compact CNC Satin Finishing Machine
The MS300/310 is an ultra-compact CNC machine specifically designed for satin finishing using abrasive belts. Available with 4 or 5 numerical axes depending on the model, it is equipped with a unique double abrasive belt device. Each belt can be manually oriented, allowing for the fitting of numerous tools to achieve satin finishing on even the most complex surfaces.
Applications
This machine excels in satin finishing various components, including:
- Watch casebands
- Watch tang buckles
- Stainless steel satin finishing
Characteristics
The MS300/310 boasts an extremely compact volume and dimensions, making it highly efficient for its size. It features oscillation cycles on the X and Z axes for precise satin finishing and includes an integrated filtration and cooling system located beneath the machine. A wide choice of tools (such as rollers, work tables, sole plates, and shaped sole plates) further enhances its versatility for different satin finishing needs.
The machine allows for tool and belt orientation, providing flexibility in the machining zone.
It is suitable for workpieces ranging from ∅20 to 80 mm. The MS300/310 utilizes a Fanuc 0i control system with ISO programming, offering macro assistance for streamlined operation and consistent satin finishing results.
