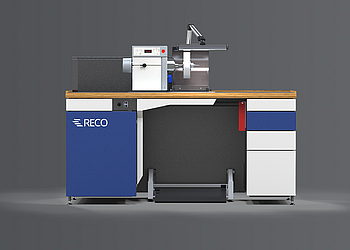

Manual finishing machine
BU200
- Lapping
- Satin-finishing
- Polishing
- Emery polishing
- Deburring
Informations and download
Characteristics
- High precision spindle with Schaublin type W20 collet
- Manually adjustable feeding speed
- Premier quality mechanical and electrical components
Functionalities
Polishing tool
Lapping tool
Tool for satin finishing with abrasive belt
Collet arbor
Specificities
- Manual speed controller with digital display
- Can be delivered with polishing bench
| Disk Ø max. | 250 mm | |
| Clamping system | Schaublin W20 | |
| Type of motor | Synchronous Max. speed | 3'800 rpm |
| Dimensions L/D/H | 400x350x340 mm |
| Weight | 70 kg |
| Nominal power | 1.5 kW |
| at 1000 min⁻¹ | at 2000 min⁻¹ | at 3000 min⁻¹ | |
| Sound level* | < 56 dBA | < 61 dBA | < 67 dBA |
| * measured at a distance of 50 cm (machine alone) |
| • Polishing unit |
| • Lapping unit |
| • Abrasive belt unit for satin finishing |
| • Arbor for collet |
| • Mounting on new polishing benches BP300 or BP310 |
| • Polishing table |
| • Pneumatic workpiece holder spindle |
| • Set of internal collets M16x1 |
| • Lapping support carriage |
| Non-exhaustive list, other options are available on demand |
Options
Lathe mounting on polishing bench BP300/310
Cross slide table
Motorised spindle with manual release
Belt grinder pivoting kit
Roller bar
Polishing table
Pneumatic clamping
Set of collets
