Manual lapping machine
ML100
- Lapping
- Smoothing
- Satin-finishing
Informations and download
Characteristics
- Highly modular thanks to the W20 interface and the design of the tooling support
- Machine offered with adjustable feet or on one of our range of BP workbenches
- Compatible with BU200 series disks and some accessories
- ~60 % energy savings (* Takes into account electricity consumption and reduced workshop air conditioning requirements)
Functionalities
Dial maker disk protection
RECO-ML100
Workbench with mist extractor and recovery of condensate
Specificities
- Interchangeable disks Ø250 mm
- Choice of disks: polyurethane, steel, etc.
| RECO-ML100 (alone) : | |
| Dimensions L/D/H | 0.43 x 0.38 x 0.52 m |
| Weight | 80 kg |
| Ø max. of disks | 250 mm |
| Clamping system | W20 |
| Motor | Synchronous |
| Max. disk speed | 1'500 min⁻¹ |
| Installed power | 1,5 kW |
| Voltage | 230V - 10A |
| Stainless steel |
| Titanium |
| Precious metals |
| Sapphire |
| Ceramics |
| Brass |
| • Special disk protection to optimize mist recovery |
| • Workbench with mist extractor |
| • Recovery of condensate |
| • Disks with PUR recovery of various hardnesses |
| • Hardened roller bars Ø18 enable carriages to be fitted |
| • Polishing tables adjustable on all axes |
Options
Configuration with 1 lapping/polishing spindle on carriage + 1 polishing table

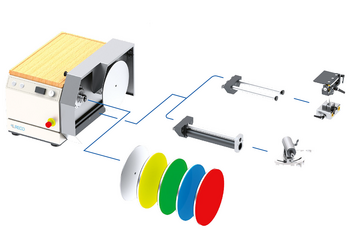

Modularity
Configuration with 2 polishing tables
Our automation solutions
Increase the productivity and autonomy of your RECO and BULA machines

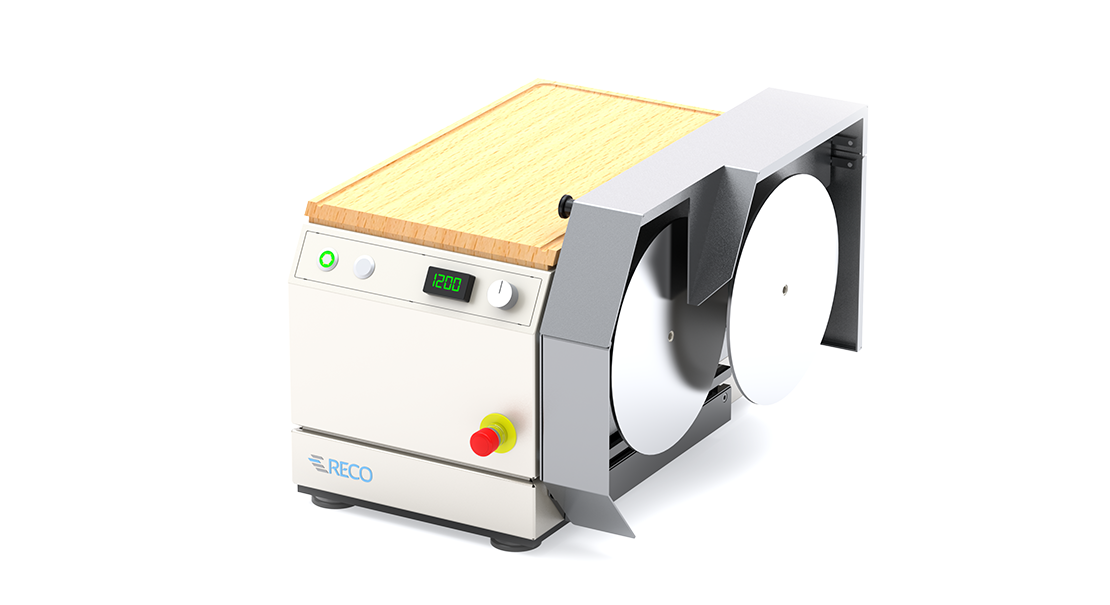

RECO-ML100 : Robust and compact lapping machine
The RECO-ML100 is a lapping machine designed to deliver performance and reliability in all finishing operations. Compact and robust, it features two discs capable of transmitting high torque at both low and high speeds, ensuring precise lapping, smoothing, or satin-finishing.
This lapping machine combines modularity and ergonomics thanks to the W20 interface and its flexible tooling support. It can be used independently with adjustable feet or integrated into a RECO-BP workbench, and it is compatible with the discs and accessories of the RECO-BU200 range.
Equipped with interchangeable discs (Ø250 mm) in polyurethane or steel, the RECO-ML100 optimizes energy consumption while delivering high output. Ideal for manual lapping, this lapping machine ensures precision, consistency, and efficiency in all finishing operations.
