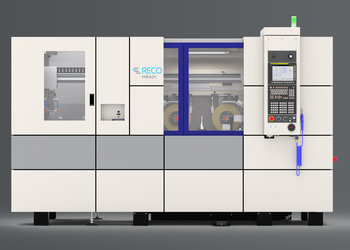

CNC grinding machine
MR401
- Grinding
Informations and download
Applications
Grinding between lugs and watch case sides
Before grinding (blank workpiece with burrs)
After grinding
Characteristics
- 4 simultaneous digital axes
- Double tool spindle for machining between lugs and watch case sides simultaneously
- Spring bar hole drilling
- Automatic grinding wheel dressing
Functionalities
Machining zone
Dressing device
Cooling and grinding wheel cleaning nozzles
Specificities
- Suitable for workpieces from Ø20...80 mm
- Fanuc 0i control
- ISO programming with macro assistance
| Number of axes (simultaneous) | 5 (4) | |
| Travel | Max. speed | |
| Linear axis X | 158 mm | 20 m/min |
| Linear axis U | 158 mm | 20 m/min |
| Linear axis Y | 50 mm | 20 m/min |
| Linear axis Z | 167 mm | 20 m/min |
| Rotary axis B (spindle) | 360° | 33 or 66 rpm |
| Linear axis W (ATC) | 535 mm | 20 m/min |
| Max. tool diameter | Ø300 mm |
| Max. tool width | 135 mm |
| Clamping system | HSK-A80 |
| Type of motor | Asynchronous |
| Max. speed | 4'800 rpm |
| Nominal power | 3 kW |
| Cooling | Water |
| Type of lubricant (machining fluid) | Grinding oil |
| Dimensions L/D/H | 2'100/1'700/2'200 mm |
| Empty weight | ~3'100 kg |
| • Renishaw system |
| • Automatic loading/unloading with workpiece loader CP301 |
| • Springbar hole drill |
| • Balancing system MPM |
| • Air extraction and filtration |
| • Cutting oil filtration system |
Options
RECO-CP301 workpiece changer

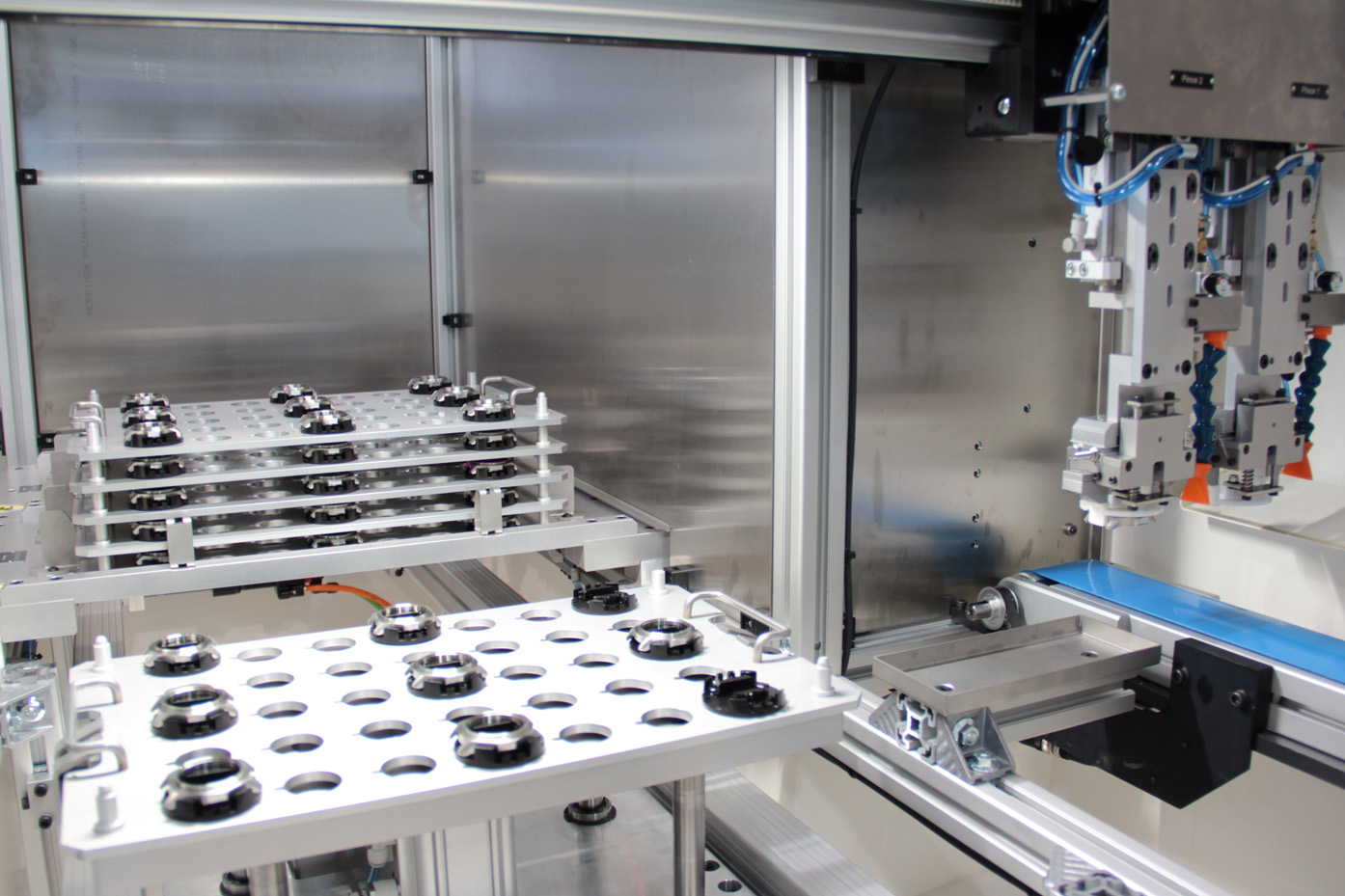

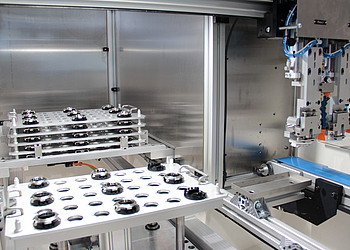

Palletising system CP301
Renishaw touch probe
Spring bar hole drilling
